Light Sources

CUDA Max 300

CUDA Max 300 Xenon Light Source: Our Brightest Performer

Providing quality headlight systems to surgeons for more than two decades, CUDA Surgical is proud to introduce the Max300 Xenon light source. A product of our vast experience, and continuous research and development efforts in Xenon lighting, the Max300 offers superior performance by integrating our most recent technological advancements into the most robust, user friendly, and efficient Xenon light source available today.

  • 285,000 lux at 16 inches/40cm working distance; The brightest
  • and newest 300W Xenon light source available
  • Innovative Optical Train Design; Improved light path
  • design for the most e_cient light transmission possible
  • Pro-Rated 1000 Hour Lamp Life
  • Upgraded parabolic lamp design; optimum performance
  • of the lamp over a longer period of time backed by our
  • 1000 hour warranty
  • 5600° K color temperature for natural, accurate color rendition
  • of tissue. CRI (Color Render Index) of 97+
  • Advanced Dual Fan Cooling System; runs quiet and cool
  • extending the life of the unit
  • State of the art Xenon technology; not decades old design

System Highlights

  • When paired with a CUDA headlight, light is evenly distributed through the light spot
  • with no hot center or distracting halo
  • Intuitive, easy to use touchpad interface
  • Digital display of light output and total running hours
  • Stand-by mode leaves light source ready to use with no distracting light leakage
  • Service messages provide for quick maintenance; resettable lamp life meter on back
  • Automatic shutter closes when _ber optic cable is removed for enhanced safety
  • Easy lamp replacement. No tools needed unlike other systems on the market
  • Four port turret featuring ACMI, Wolf, Olympus and Storz connections for maximum flexibility

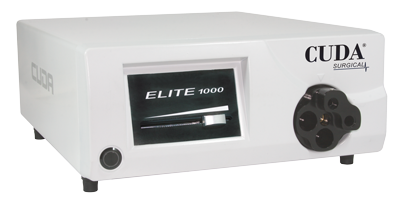

Elite 1000 Xenon Light Source

Our Elite 1000 model offers exceptional bright, white illumination required for surgical procedures. Standard to this model is a 1,000 hour lamp, lamp life hour meter on the rear panel and 5,600K color temperature.

  • New Ceramic body elliptical lamp
  • 1,000 hour lamp
  • Precise Lamp Alignment System
  • Dual Fan Cooling System
  • Manual Intensity Slide
  • Xenon automatically enters standby when cable is removed from active port
  • Whisper Quiet
  • High quality performance



  • Light Output 225,000 Lux measured at 16″ (40cm)
  • Variable light Spot 20 -110mm measured at 16″ (40cm)
  • Front Panel Controls On/Off Switch, Attenuator Control, Turret
  • Lamp Type Ceramic Body Elliptical Lamp
  • Lamp Warranty 1,000 Hours
  • Weight 10.0 kg (22 lbs)
  • Power Consumption 450 Watts
  • Dimensions 338mm (13.3″) W x 155mm (6.1″) H x 457mm (18″) D
  • Lamp Color Temperature 5,600K
  • Lamp Power Rating 300 Watts
  • Input Voltage Range 100 – 120 VAC 50 /60Hz, 220–240VAC 50Hz
  • Regulatory UL60601, EN 60601-1, EN 60601-1-2, CAN/CS C22.2, No 601.1-M90, CE
  • Equipment Class BF-TYPE

Ordering Information

  • ELITE1000-K: 300 Watt Xenon light source, 4 Port Turret
  • DRH-110B-ESG: CUDA ELITE “RCS” Headband & 110MM variable spot module, 3.5MM Molded SureGrip black bifurcated cable

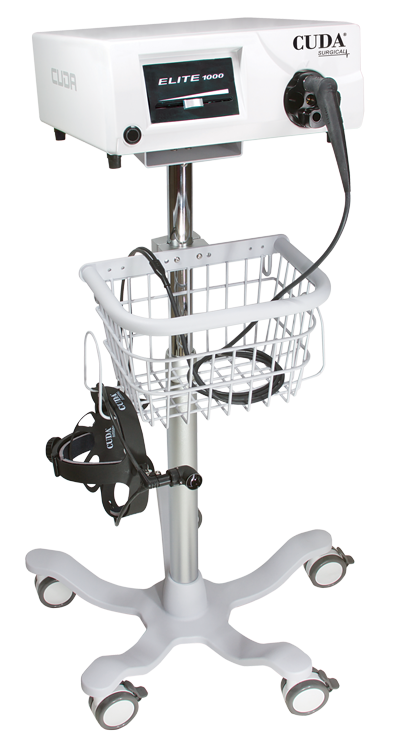

  • SYC0070T: Floorstand For CUDA light sources
  • SYC0300: Replacement Lamp Module for ELITE1000
    (For International use replace -K with required power cord plug)
