ELITE LLS-LLX Battery Powered LED Headlight System

Posted · Add Comment

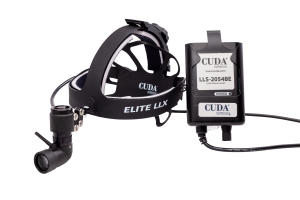

ELITE LLS-LLX Battery Powered LED Headlight System

Portable, Wireless and Ultimate Brightness!

CUDA Surgical’s LED headlight

Produces an unparalleled bright, white light with superior battery life so you can work without interruption. The revolutionary Rear Cranial Support design will create a new wearing experience, which is lightweight, comfortable, flexible and durable!

CUDA Surgical LED Headlight

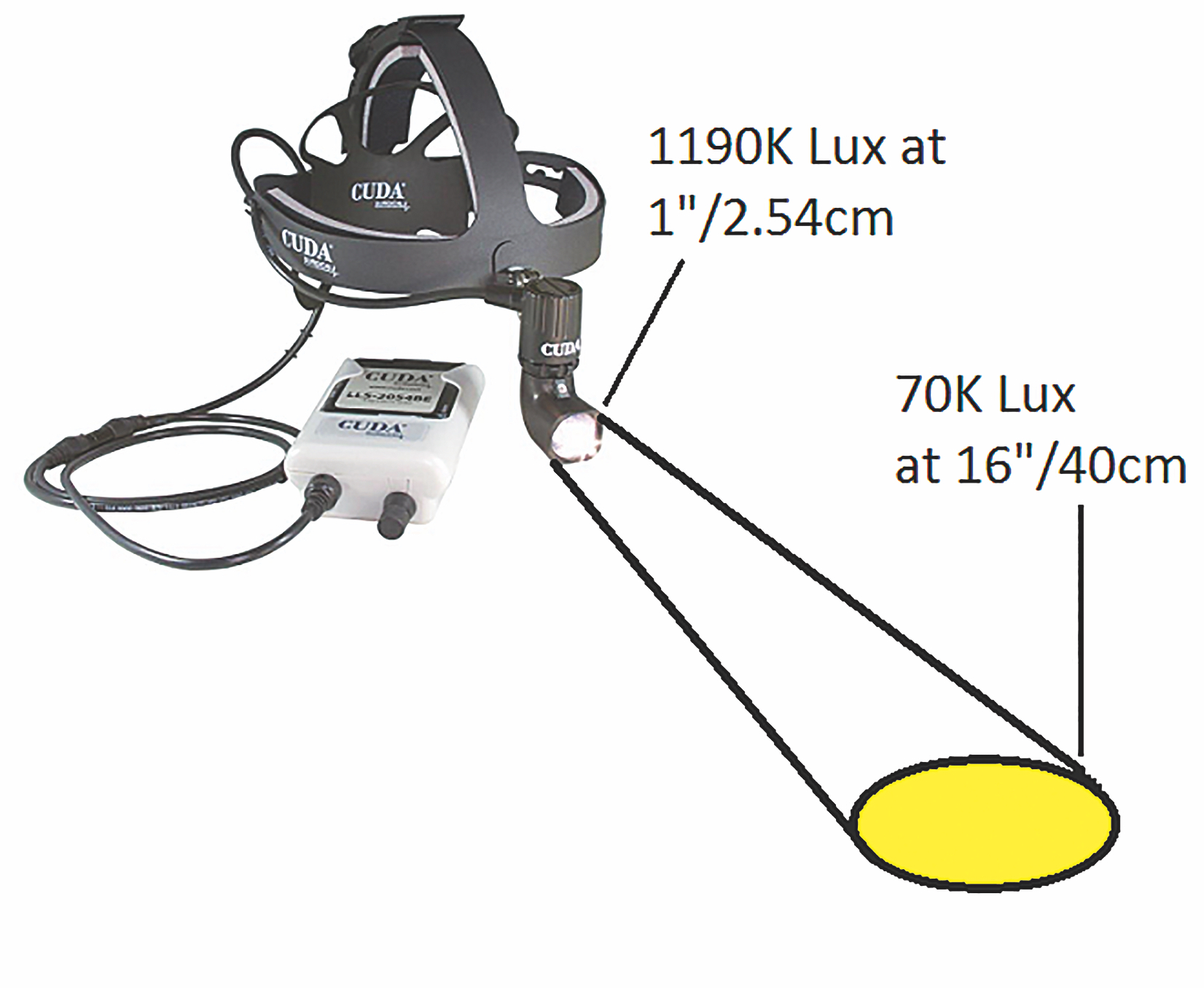

Prepare to be amazed by the superior light quality and feather weight comfortable feel of this 10W LED lighting system. The battery operated LED Headlight System provides 70,000 lux of light (measured at a 16 inch/ 40cm working distance) to the surgical site and features an audible sound when battery charge is getting low. Also available with Cuda Surgical SPORT band.

CUDA Surgical Battery and Charger
Each battery lasts 2 hours 30 minutes at full intensity, 5 hours at half power (output). The charger will fully charge an empty four cell battery in 3 ½ hours. The ELITE LLX system comes with two standard batteries and one extended life battery for easy replacement when one battery becomes low during procedures.


  • 10w LED Producing Bright, White Light
  • Color temperature: 4,500°K
  • Typical LED life: >50,000 hours
  • Premium Designed Lightweight Headband with Rear Cranial Support for added comfort
  • Variable Module Spot 20mm-110mm @ 16″(40cm)
  • Variable Intensity Control: 0 – 70,000 Lux at 16”(40cm) working distance
  • Headband with LED Module Weight – 12 oz / 340 grams
  • Battery and Holster Weight – 12 oz / 340 grams
  • Battery Life – 2 hrs 30 min @ Full Intensity, 5 hrs at Half Intensity
  • Battery Charger Accepts 100-240V AC, 50/60 Hz input for worldwide operation
  • Battery Recharge Time – 3.5 hrs
  • Warranty Three (3) Years on LED Headlight and One (1) Year on Battery
  • Classification: European Class I, Active device per Annex IX, rule 1
  • FDA Class I, Device Listing 125713
  • Complies with Essentials Requirements Matrix of MDD 93/42/EEC, amended by 2007/47/CE

System Includes:

  • 1 LED Headlight with Rear Cranial Support “RCS” Headband
  • 1 Power Pack Holster with Intensity Control
  • 2 Rechargeable Standard Batteries
  • 1 Extended Life Battery
  • 1 Dual Bay Battery Charger
  • 1 Padded Carrying Bag with Shoulder Strap

Ordering Information:

  • LLS-LLX-K: Complete LED Headlight System with Dual Bay Charger, RCS Headband
  • LLS-LLX-SB-K: Complete LED Headlight System with Dual Bay Charger, SPORT band
  • LLS-LLX-CH-K: Complete LED Headlight System with Dual Bay Charger, with Classic Headband
  • LLS-3736: Replacement Single Bay Charger
  • LLS-3736-2: Dual Bay Charger
  • LLS-2054HE: CUDA Surgical Encrypted Holster
    (For International ordering please specify power cord.)

LLS-5500 Wireless LED Headlight

CUDA Surgical’s LLS-5500 Wireless LED Headlight offers the ability to be untethered from a light source or remote battery pack while providing bright, white light with a uniform spot. The lightweight RCS headband provides comfort and stability where a wireless headlight is preferred.

  • No external wires or batteries
  • 30,000 lux output at 16”/ 40cm distance with a bright, clean, uniform spot
  • 20-110mm spot variability at 16”/ 40cm working distance
  • Variable output switch on side of headband to set different light outputs
  • 4 hour battery life for fully charged battery at maximum output
  • Battery life doubles when used at 50% output
  • New headband design distributes weight evenly for maximum comfort
  • Accessible battery on the headband is quick and easy to change
  • Low-battery indicator clearly visible on side of headband
  • 4-5 hour recharge time for batteries

Specifications 10w LED Headlight

  • Variable Module Spot 20mm-110mm @16”/ 40cm
  • Side mounted variable intensity control: 0-30,000 Lux at 16”/ 40cm working distance
  • Rear Cranial Support Headband for added comfort
  • Headband with battery weight 15oz/ 437grams
  • Battery weight 3.7 oz/ 106g
  • Battery life 4 hours at full intensity and doubles at half output (power)
  • Battery Recharge Time – 4-5 hrs
  • Color Temperature 4,500K typ.
  • Color Rendition Index (CRI): 75
  • Typical LED life: >50,000 hours
  • Warranty Two (2) years on LED Headlight and one (1) year on Batteries
  • Classification: FDA Class 1 Device Listing D125713

System Includes

  • 1 LED headlight with Rear Cranial Support “RCS” headband
  • Side mounted battery holster and attenuator
  • 2 Rechargeable batteries
  • 1 single bay charger
  • 1 padded carrying bag with shoulder strap
  • Disposable Joysticks for positioning module

Ordering Information

  • LLS-5500-KIT: LED Battery Operated Headlight System includes charger and two batteries with International adaptors.
  • LLS-1821J: Replacement Battery for LED 5500
  • LLS-1821J-C: LED 5500 battery charger
  • SYC0026: Black Module Hinge Extension to allow for loupes
