Battery Operated LED headlights for Surgery

LED Headlight Systems:

Posted · Add Comment

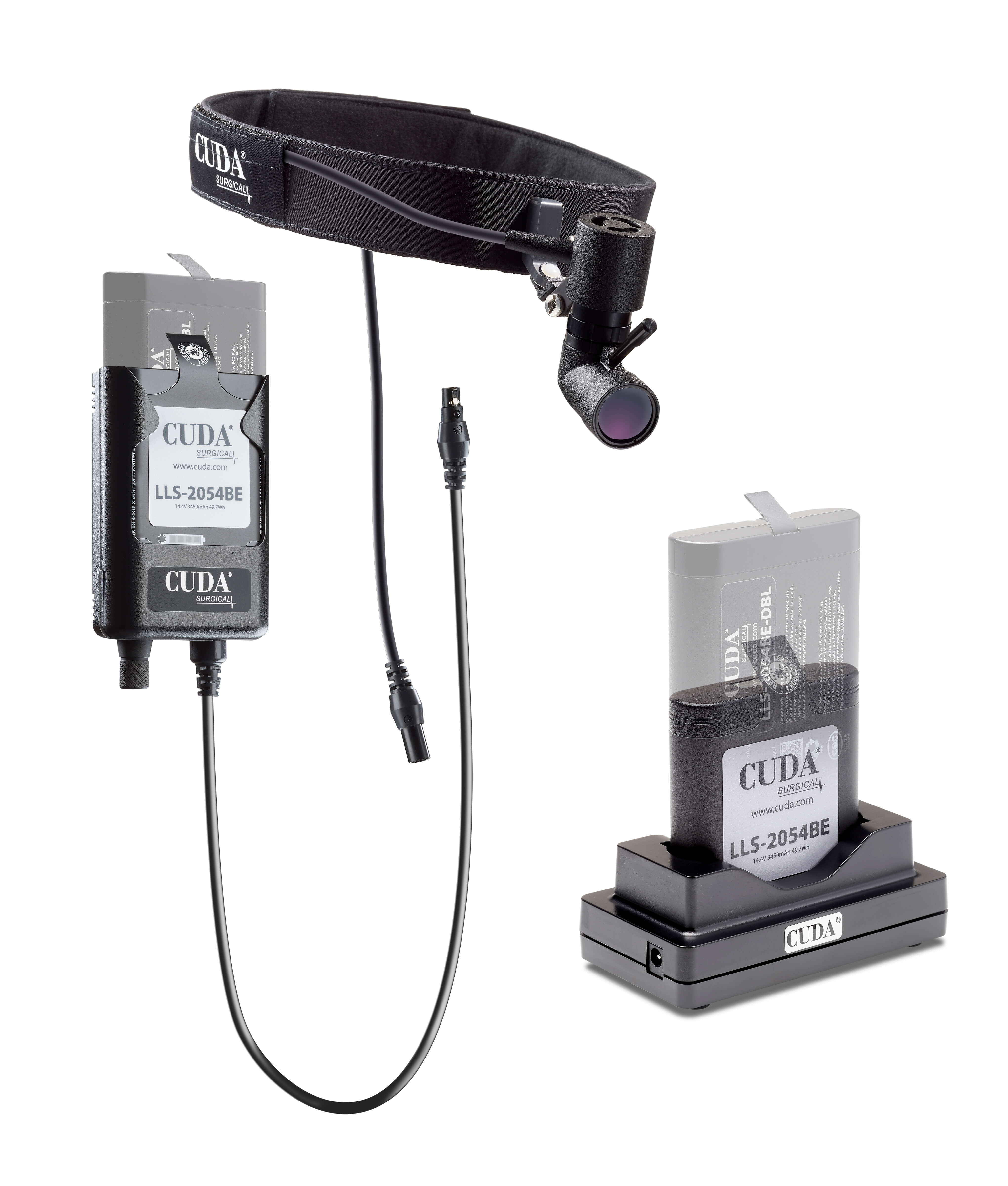

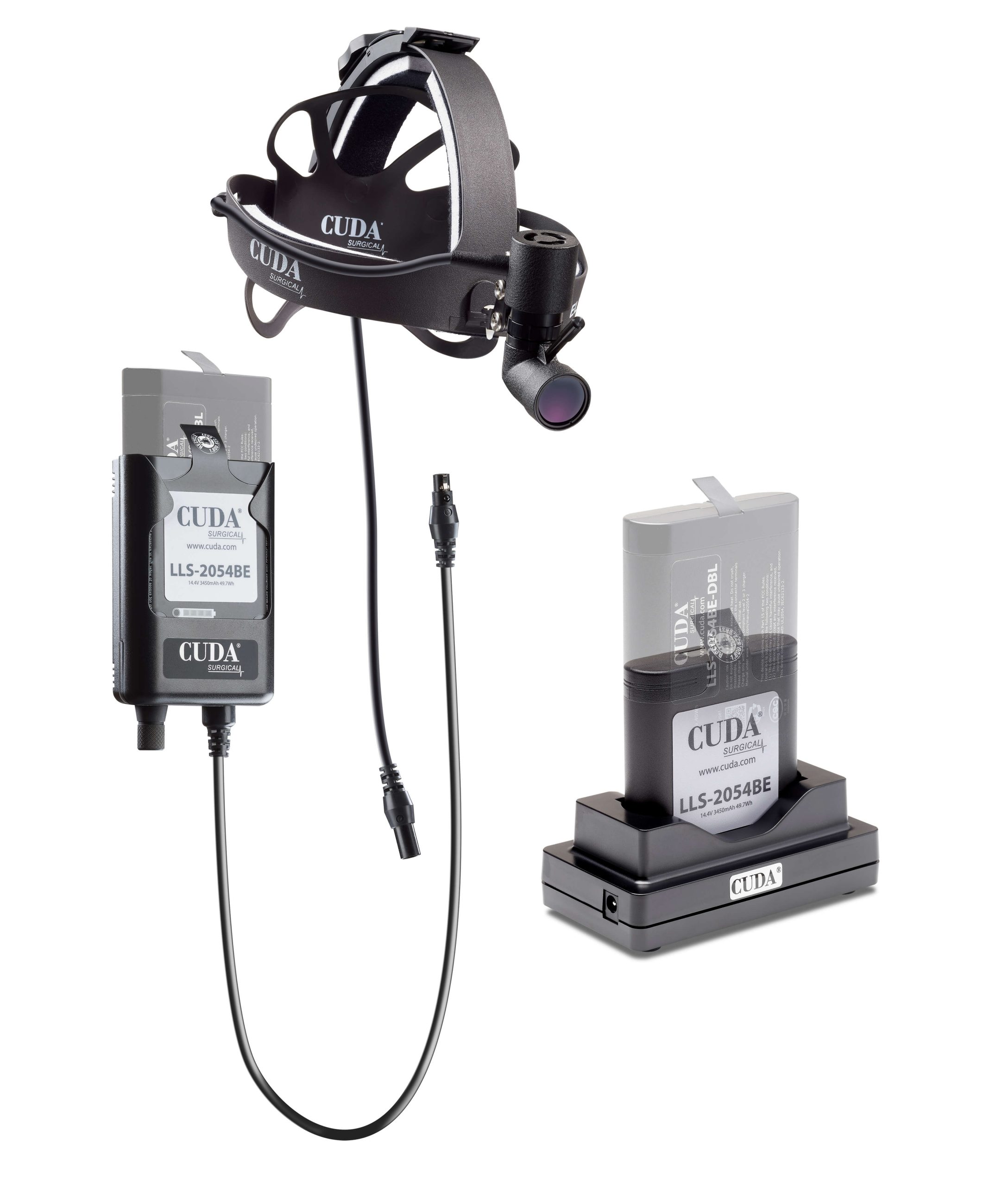

The Elite LLS-LLX Battery Powered LED Headlight System

Portable, Wireless and Ultimate Brightness!

lls-llx led battery operated LED Headlight


CUDA Surgical’s LED headlight

Produces an unparalleled bright, white light with superior battery life so you can work without interruption. The revolutionary Rear Cranial Support design will create a new wearing experience, which is lightweight, comfortable, flexible and durable.

CUDA Surgical LED Headlight
Prepare to be amazed by the superior light quality and feather weight comfortable feel of this 10W LED lighting system. The battery-operated LED Headlight System provides 80,000 lux of light (measured at a 16 inch/ 40cm standard working distance) to the surgical site and features an audible sound when battery charge is getting low. Alternative headband options available with the Cuda Surgical SPORT band.

CUDA Surgical Battery and Charger
Each battery lasts 3 hours, 15 minutes at full intensity, 6.5 hours at half power (output). The charger will fully charge an empty four cell battery in 3 ½ hours. The ELITE LLX system comes with two standard batteries for easy replacement when one battery becomes low during procedures.

Specifications:

  • 10w LED Producing Bright, White Light
  • Color temperature: 4,500°K
  • Typical LED life: >50,000 hours
  • Premium Designed Lightweight Headband with Rear Cranial Support for added comfort
  • Variable Module Spot 20mm-110mm @ 16″(40cm)
  • Variable Intensity Control: 0 – 80,000 Lux at 16”(40cm) working distance
  • Headband with LED Module Weight – 12 oz / 340 grams
  • Battery and Holster Weight – 12 oz / 340 grams
  • Battery Life – 2 hrs 30 min @ Full Intensity, 5 hrs at Half Intensity
  • Battery Charger Accepts 100-240V AC, 50/60 Hz input for worldwide operation
  • Battery Recharge Time – 3.5 hrs
  • Warranty Three (3) Years on LED Headlight and One (1) Year on Battery
  • Classification: European Class I, Active device per Annex IX, rule 1
  • FDA Class I, Device Listing 125713
  • Complies with Essentials Requirements Matrix of MDD 93/42/EEC, amended by 2007/47/CE

System Includes:

  • 1 LED Headlight with Rear Cranial Support “RCS” Headband
  • 1 Power Pack Holster with Intensity Control
  • 2 Rechargeable Standard Batteries
  • Upgrade Option for Extended Long-Life Battery
  • 1 Dual Bay Battery Charger
  • 1 Padded Carrying Bag with Shoulder Strap

Ordering Information:

  • LLS-LLX-K: Complete LED Headlight System with Dual Bay Charger, RCS Headband
  • LLS-LLX-SB-K: Complete LED Headlight System with Dual Bay Charger, SPORT band
  • LLS-LLX-CH-K: Complete LED Headlight System with Dual Bay Charger, with Classic Headband
  • LLS-3736: Replacement Single Bay Charger
  • LLS-3736-2: Dual Bay Charger
  • LLS-2054HE: CUDA Surgical Encrypted Holster
    (For International ordering please specify power cord.)

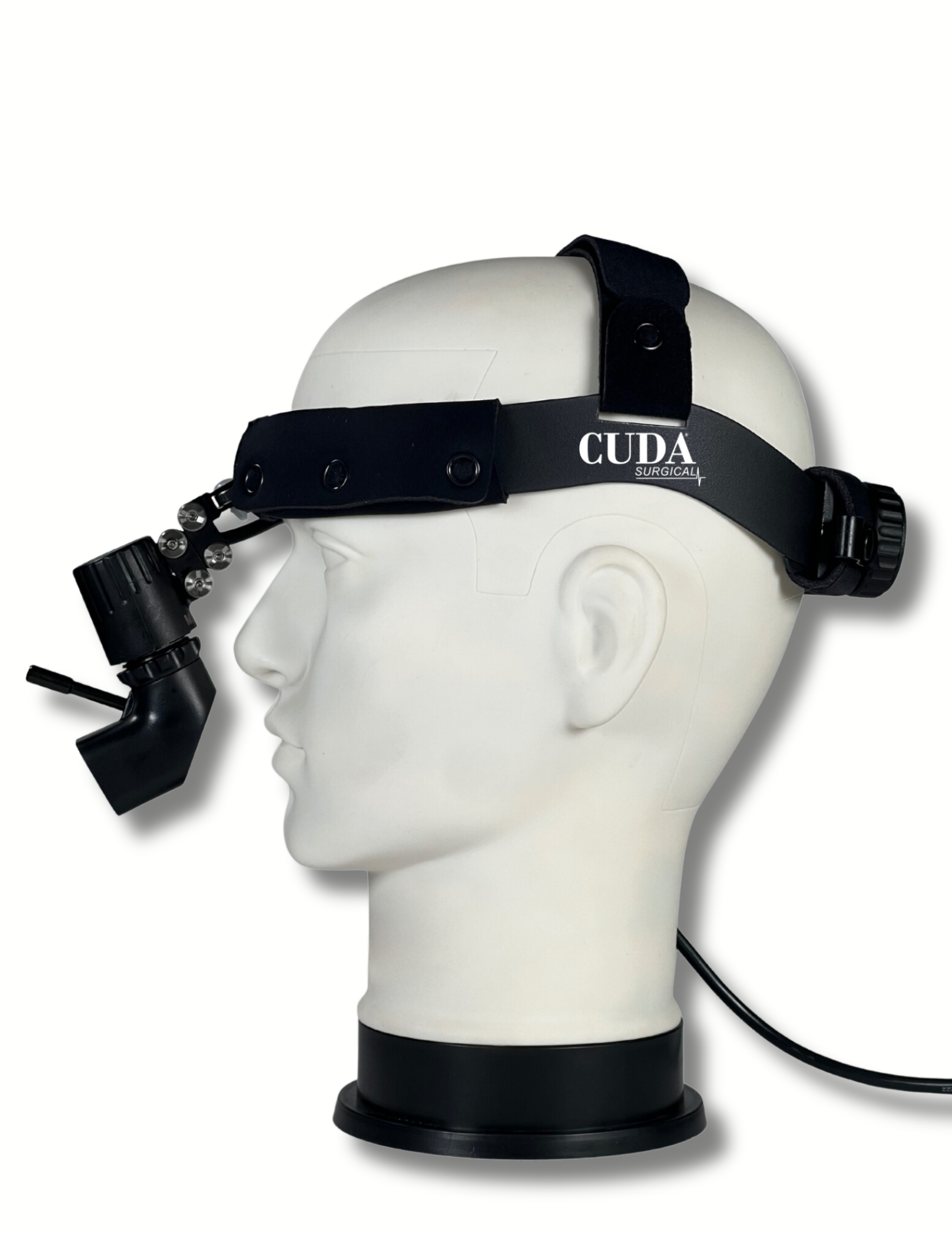

LLS-4700 Battery Operated Headlight for Surgery

The LED 4700 is a game-changer, and we take pride in offering an economically efficient model that doesn’t compromise on quality. You have the freedom to choose from a range of options, allowing you to customize the headlight to suit your precise requirements. With this cutting-edge innovation, we empower you to fine-tune the lighting experience to match your unique needs like never before. Experience the brilliance of the LED 4700 and elevate your lighting solutions to new heights.

  • Advanced LED technology for exceptional brightness
  • Light Intensity: 70,000 Lux (measured at a 16in/40 cm standard working distance)
  • Lightweight and ergonomic design for maximum comfort
  • Premium Batteries built with a run time of 3hours,15 minutes at full intensity, 6.5 hours at half intensity
  • Specialized Neoprene Wrap that is absorbent, breathable and easy to clean

Additional Specs:

  • Color Temperature: 4,500° K for accurate color
    representation of tissue
  • Typical LED life: > 50,000 hours
  • Variable intensity control: 0 to 70,000 LUX (measured at
    a16 in/40 cm standard working distance)
  • Battery Recharge time 3.5 hours
  • 3 year warranty for the LED headlight,1 year for the
    batteries
  • Built in audible warning when battery charge is low

System includes:

  • 10 watt Bright LED Headlight with choice of a Hard Headband or Soft Headband with neoprene comfort wrap
  • Battery Pack with two Standard Rechargeable Batteries
  • Single Bay or a Dual Bay Battery Charger Option
  • Reusable, autoclavable Joysticks for positioning light spot
  • Carrying Bag for storage

See the Difference with Our Headlight! Compare, Choose, and Experience True Distinction!

Our Headlight’s Unrivaled Precision on Display – The Steak’s Perfection Showcased Like Never Before!

Competitor light spot on the left, CUDA Surgical LLS-4700’s Light Spot on the right

Which light spot do you choose for clarity for accurate tissue representation?

Are you currently a Medical Resident in the United States?

Get exclusive pricing on our LED 4700 Battery Operated LED Surgical Headlight:

LLS-4700 System with choice of Hard Top or Soft Top with comfort wrapped style Headband and Single Bay Charger: $3,150.00
LLS-4700 System with choice of Hard Top or Soft Top comfort wrapped style Headband and Dual Bay Charger: $3,275.00

System includes:

10 watt LED Headlight with choice of a Hard Headband or Soft Headband
Battery Pack with two Standard Rechargeable Batteries
Single Bay or a Dual Bay Battery Charger Option
Reusable, autoclavable Joysticks for positioning light spot
Carrying Bag for storage

6 Months Financing Available

We understand that investing in premium equipment is a significant decision. That’s why we’re thrilled to offer you flexible financing options. Take advantage of our 6-month financing plan to make this system yours!

Request Formal Medical Resident Pricing Here  » Limited-time offer. Proof of residency will be required. Offer for US Medical Residents Only.

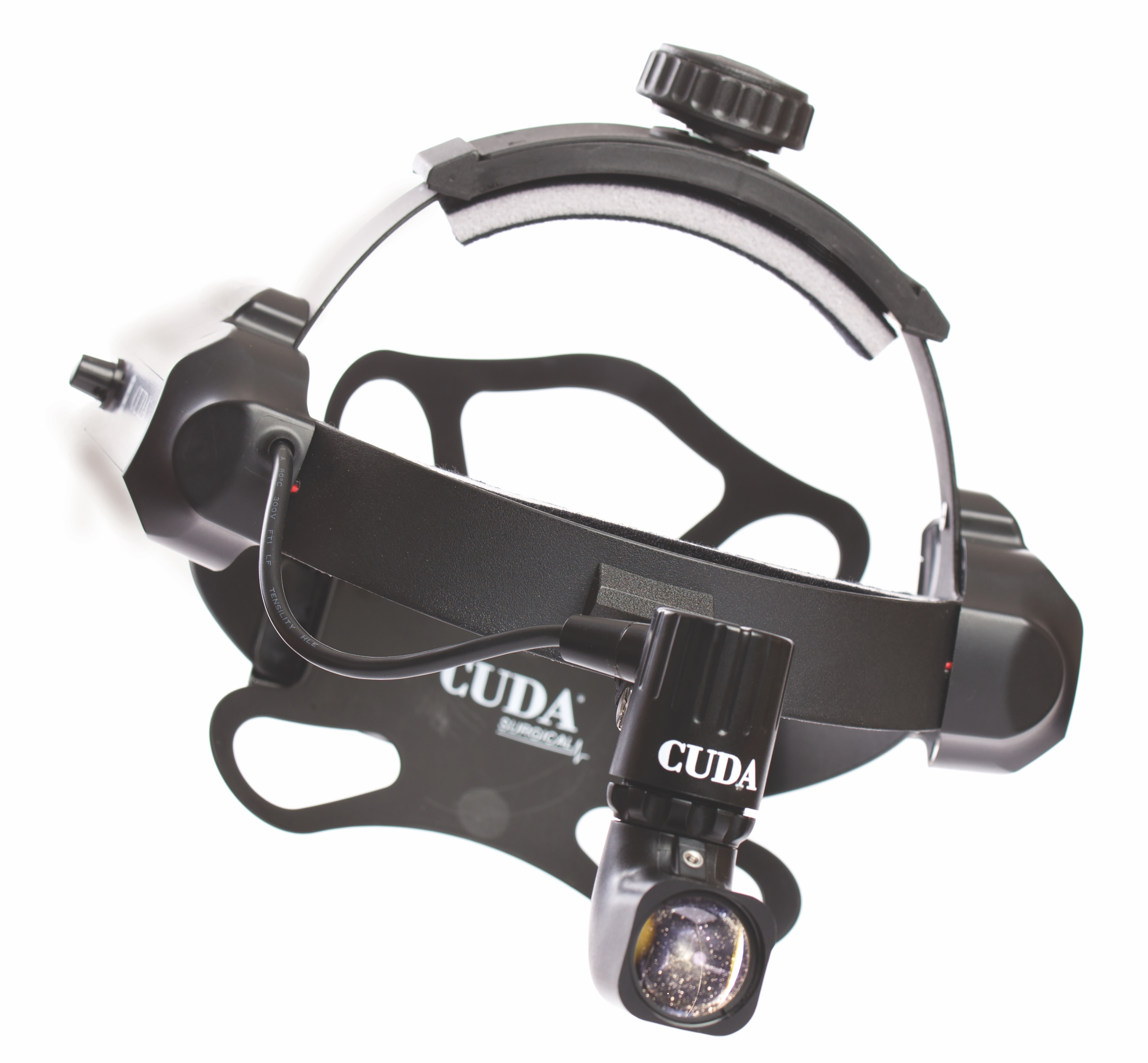

LLS-5500 Wireless LED Headlight

CUDA Surgical’s LLS-5500 Wireless LED Headlight offers the ability to be untethered from a light source or remote battery pack while providing bright, white light with a uniform spot. The lightweight RCS headband provides comfort and stability where a wireless headlight is preferred.

  • No external wires or batteries

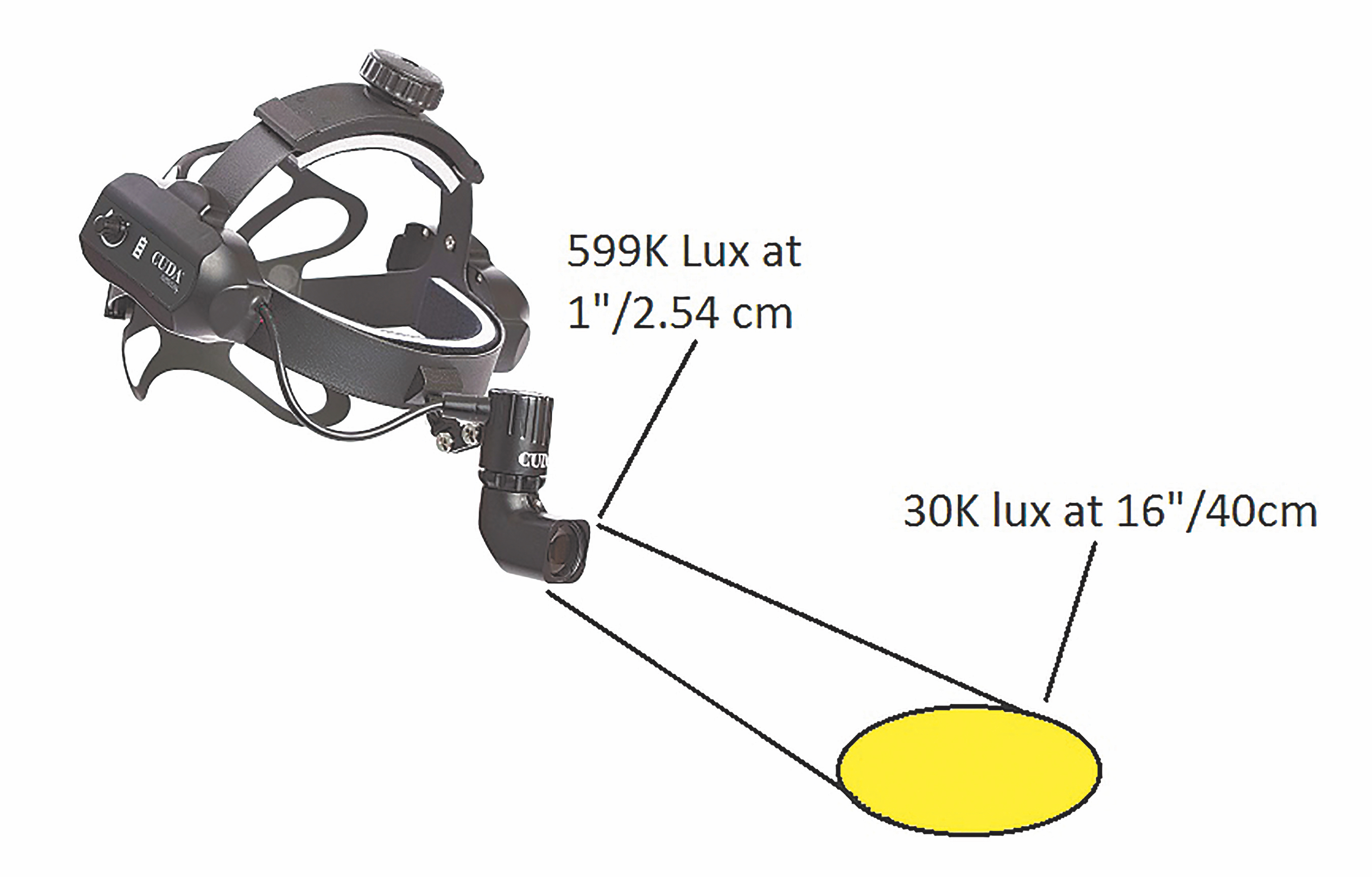

  • 30,000 lux output at 16”/ 40cm distance with a bright, clean, uniform spot
  • 20-110mm spot variability at 16”/ 40cm working distance
  • Variable output switch on side of headband to set different light outputs
  • 4 hour battery life for fully charged battery at maximum output
  • Battery life doubles when used at 50% output
  • New headband design distributes weight evenly for maximum comfort
  • Accessible battery on the headband is quick and easy to change
  • Low-battery indicator clearly visible on side of headband
  • 4-5 hour recharge time for batteries

Specifications 10w LED Headlight

  • Variable Module Spot 20mm-110mm @16”/ 40cm
  • Side mounted variable intensity control: 0-30,000 Lux at 16”/ 40cm working distance
  • Rear Cranial Support Headband for added comfort
  • Headband with battery weight 15oz/ 437grams
  • Battery weight 3.7 oz/ 106g
  • Battery life 4 hours at full intensity and doubles at half output (power)
  • Battery Recharge Time – 4-5 hrs
  • Color Temperature 4,500K typ.
  • Color Rendition Index (CRI): 75
  • Typical LED life: >50,000 hours
  • Warranty Two (2) years on LED Headlight and one (1) year on Batteries
  • Classification: FDA Class 1 Device Listing D125713

System Includes

  • 1 LED headlight with Rear Cranial Support “RCS” headband
  • Side mounted battery holster and attenuator
  • 2 Rechargeable batteries
  • 1 single bay charger
  • 1 padded carrying bag with shoulder strap
  • Disposable Joysticks for positioning module

Ordering Information

  • LLS-5500-KIT: LED Battery Operated Headlight System includes charger and two batteries with International adaptors.
  • LLS-1821J: Replacement Battery for LED 5500
  • LLS-1821C-KIT: LED 5500 battery charger
  • SYC0026: Black Module Hinge Extension to allow for loupes
