Battery Operated LED headlights for Surgery

LED Light Sources- No Lamp Needed

Posted · Add Comment

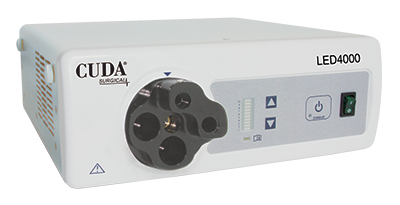

CUDA Surgical LED 4000 Light Source

Now 20% Brighter!

The NEW Cuda LED 4000 light source has undergone a further advancement of our unique LED engine design. Drawing on the emerging LED technology available on the market, our engineers have been able to improve the overall light output from the system by 20%. When used with a Fiberoptic headlight the LED 4000 produces a uniform light spot with no distracting halo or shadow. With no lamps to replace and an expected life of 50,000 hours the LED 4000-SC is a long-lasting cost-efficient alternative to traditional xenon light sources. It’s small form factor, quiet operation and ease of use make it ideal for working as an independent system or using It as a replacement for older light sources found on endoscopy towers.

• 105K Lux at 16”/40cm working distance when paired with a Cuda fiber optic headlight                              • 50,0000 hour expected life
• 20mm- 120mm adjustable spot at 16”/40cm
• Can be paired with LED specific headlight for maximum light transmission                                                 • Available with mobile floor stand
• Whisper quiet operation
• Lower cost of ownership in comparison to equivalent xenon systems
• Intensity control 0-100


  • Compact, efficient, durable source of brilliant “daylight” quality light for headlights and endoscopy.
  • Lumen output comparable to many Xenon units but more stable and consistent light output.
  • Ergonomically designed turret includes ACMI, Olympus, Storz, & Wolf ports.
  • Standby mode turns off LED but keeps light source energized and adjustable.
  • Accepts 100-240V AC, 50/60 Hz input power for worldwide operation.
  • 120 Watts
  • CRI rating of 70
  • Color temperature: LED 4000 6,500°K @ 75 CRI
  • Regulatory: IEC60601-1 3rd Edition, CAN/CSA C22.2 No. 601.1, CE mark.
  • Dimensions: 11” (28cm) W x 4.5” (11cm) H x 11” (28cm) D; Weight 7.5 lbs (3.4kg)

Ordering Information:

  • LLS-4000T-SC-K: LED 4000 light source with Standard CRI and “K” cord
  • LLS-4000T-HC-K: LED 4000 light source with High CRI and “K” cord
  • SYC0070T: CUDA light source Floorstand
  • DRH-110B-LED-Black: “RCS” Headband, 110MM variable spot module, ESG-4000B-black BIF cable
  • ESG-4000B-Black: 4MM, fused headlight cable, with SureGrip for LED light sources
    (for international ordering please specify power cord as required)

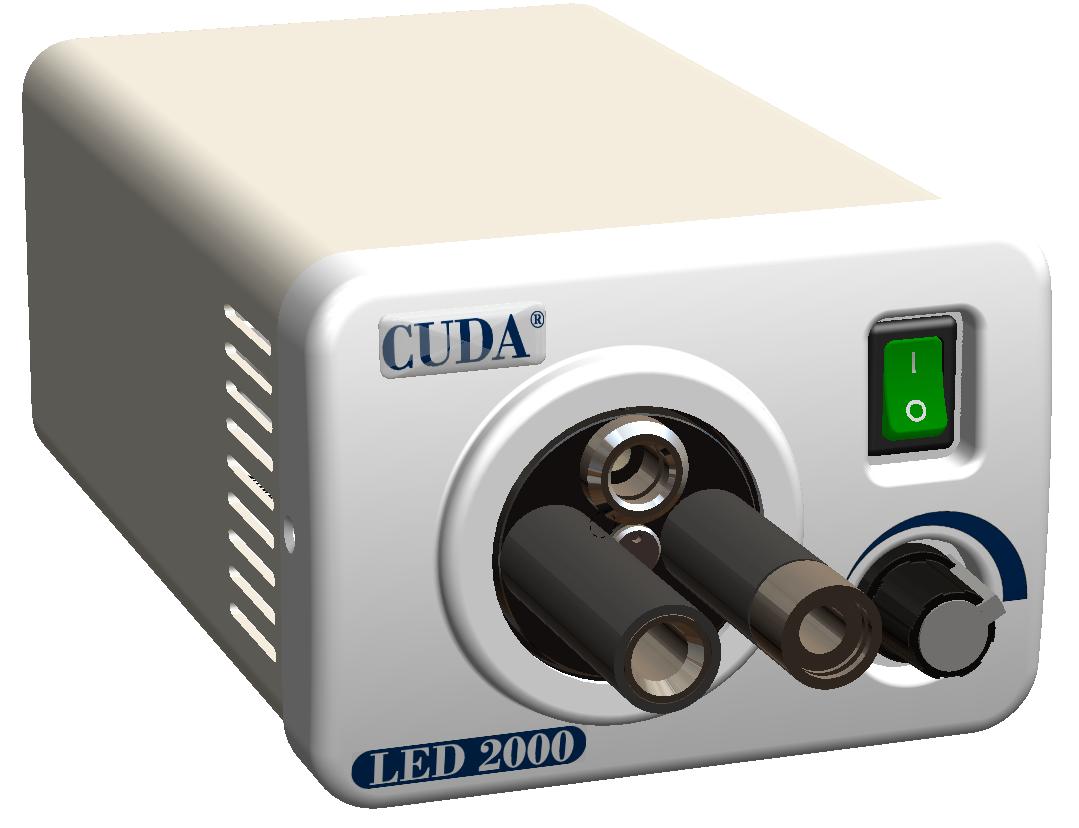

CUDA Surgical LED 2000 Light Source

Experience the brilliance of true “daylight” quality illumination with the CUDA Surgical LED 2000 Light Source. Showcasing a color temperature of 6500K and a remarkable LED lifespan of 50,000 hours, this cutting-edge light source sets a new standard for efficiency. Meticulously engineered for portability, the LED2000 combines a lightweight and compact design with a potent output of high-quality light, thanks to its innovative high-efficiency optics. Elevate your lighting experience with the LED2000 — the economical choice for unparalleled performance.


  • 50W Solid State LED Light
  • Compact, efficient, durable “daylight” light
  • Premium LLS-2000 utilizes new high efficiency design
  • Color temperature: 6500° K nominal
  • Typical LED life: >50,000 hours
  • Low power consumption: 52W typical
  • Electronic (PWM) intensity control from 0-100%
  • Four-port turret and single port versions available
  • Standard ports are ACMI, Olympus, Storz, and Wolf, other ports available
  • Accepts 100-240V AC, 50/60 Hz input power for worldwide operation
  • Regulatory: UL60601-1, CAN/CSAC22.2 No. 601.1, EN60601-1-2; CE marked
  • Dimensions: 4.65” W x 3.32” H x 7.25” D (~10” overall)
  • Weight: 1.14 kg (2.5 lbs)

Ordering Information

  • LLS-2000T-K LED-2000 light Source with “K” cord
  • SYC0070T – CUDA Floorstand
  • DRH-110B-LED – Black “RCS” HB, 110mm variable spot module, ESG-4000B-Black
  • ESG-4000B-Black: 4MM, fused headlight cable, with SureGrip for LED light sources
  • (For International ordering please specify cord required)
